In 1961, a meteorologist named Edward Lorenz was running weather simulations on a computer. He wanted to repeat a sequence by starting from the middle of a previous run, so he typed in the numbers from the printout — 0.506, instead of 0.506127. The difference was less than one part in a thousand. It shouldn’t have mattered. But the two runs diverged completely. Within a few months, Lorenz had discovered what we now call chaos theory.
Lorenz was studying convection currents. But the simpler system that best illustrates chaos — and that you can actually play with right now — is the forced pendulum.
A Pendulum With a Motor
An ordinary pendulum is one of the most predictable objects in physics. Pull it back, let go, and it swings back and forth at a perfectly regular frequency. Engineers used this precision for centuries in clocks.
Now add one ingredient: an external force that drives it at a fixed frequency. Not pushing it gently — periodically forcing it, like a child being pushed on a swing at exactly the right moments. This is a driven or forced pendulum, and its equation of motion looks deceptively simple:
θ″ = −(g/L)sinθ − βθ′ + γ cos(ωt)
Three terms on the right. The first is gravity. The second is friction. The third is the drive. No randomness, no quantum effects, no hidden variables. Just ordinary differential equations.
And yet, depending on the drive strength, this system can behave in radically different ways.
The Period-Doubling Road to Chaos
When the driving force is weak, the pendulum settles into a simple rhythm — it swings back and forth at the same frequency as the drive. Predictable. Boring. One point appears on a Poincaré section (sampling the state once per drive period).
As you increase the driving strength, something strange happens: the pendulum suddenly starts returning to a different position each cycle. Period-2 motion. Two points. Then, with slightly more force, it flips to period-4. Then period-8. Then period-16. Each transition, called a period-doubling bifurcation, happens at a specific, predictable drive strength.
The ratios between successive bifurcation points converge rapidly: 4.669… This number — the Feigenbaum constant — is the same for any system that follows this period-doubling route to chaos. Mitchell Feigenbaum discovered it in 1975 while studying population models, and was startled to find it also appeared in a pendulum experiment running in a colleague’s lab at Los Alamos. It is, as he later put it, “a most mysterious number.” It appears in electronic circuits, dripping faucets, and cardiac arrhythmias. It is a universal constant of nature.
Beyond the bifurcations, chaos arrives. No amount of precision in your initial conditions will let you predict the pendulum’s long-term behavior. The motion looks random, but it isn’t — it’s completely deterministic. Run the same simulation twice with identical parameters, and you’ll get identical results. But tiny differences in starting conditions grow exponentially, rendering long-term prediction impossible. This sensitive dependence on initial conditions is what Lorenz later called “the butterfly effect.”
What a Poincaré Section Actually Shows
The visualization tool samples the pendulum’s state once per drive period — every time the motor completes one cycle. Plotting these samples reveals the structure hidden inside the chaos:
– A single point → the pendulum is locked into a stable rhythm
– Two points → period-2 oscillation
– Finite points (4, 8, 16…) → higher-period motion
– A closed curve → quasi-periodic motion (ordered but not periodic)
– A fractal structure → genuine chaos
That fractal is the signature. Zoom in on a chaotic Poincaré section, and you find islands of structure — periodic windows buried within chaos. The closer you look, the more detail you find, forever. The boundary between order and chaos is itself fractal.
Why This Matters Beyond Pendulums
The forced pendulum is not a toy problem. The same mathematics describes:
– Electronic oscillators — engineers building radio receivers must design around chaotic regimes
– Laser physics — the transition to chaos determines beam stability
– Climate science — El Niño patterns show similar transitional behavior
– Structural engineering — buildings driven near resonance can exhibit period-doubling before failing
– Cardiac dynamics — certain arrhythmias follow the same period-doubling route to dangerous irregularity

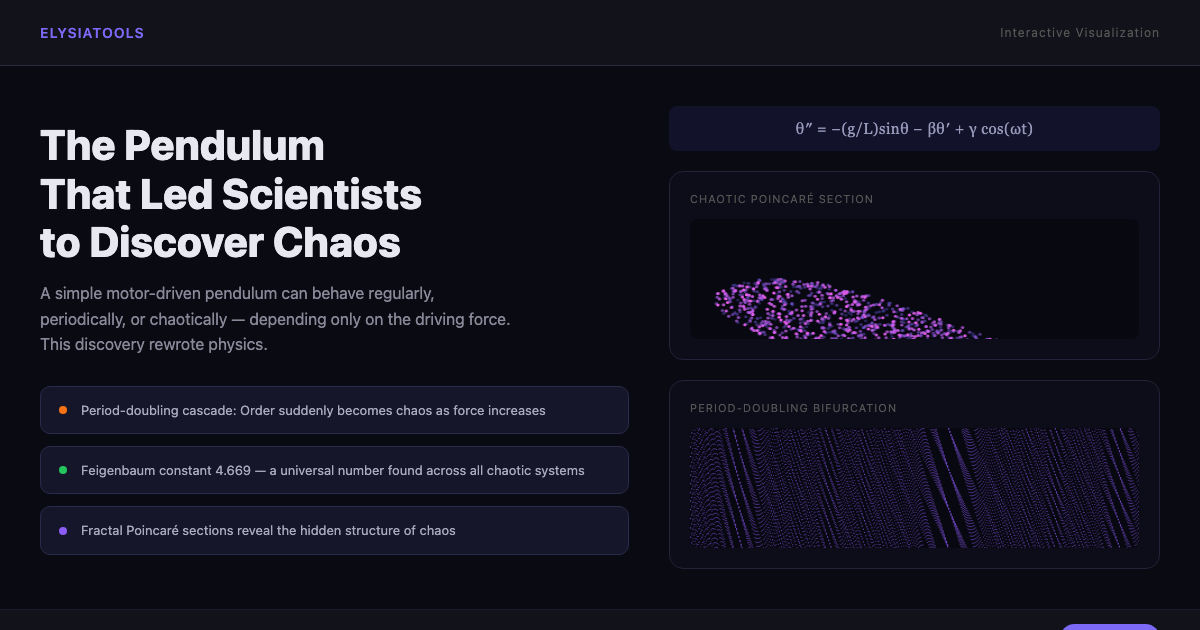

Because the forced pendulum is simple to build, mathematically tractable, and exhibits the full range of dynamical behavior, researchers use it as a testbed before applying dynamical systems insights to more expensive or dangerous systems. You can explore it yourself at the [Forced Pendulum Poincaré Section](https://elysiatools.com/en/visualizations/forced-pendulum) tool on ElysiaTools. Try the presets — Period-1 for regular motion, Period-2 for the first bifurcation, and Chaos to watch trajectories diverge. The theory panel explains each control and what the Poincaré section tells you.
The Deeper Idea
What chaos theory revealed is that determinism does not imply predictability. A system governed by perfectly deterministic laws can still be fundamentally unpredictable over long timescales — not because we lack the right instruments, but because the mathematics itself makes long-term prediction impossible.
This was a genuine shock to scientists in the 1970s. Newton had given us a clockwork universe. Poincaré had glimpsed the problem a century earlier but lacked computing power. And Lorenz, starting from a rounding error, actually proved it.
The forced pendulum sits at the heart of this discovery. It is one of the simplest physical systems capable of genuine chaos — just a pendulum and a motor. And it offers the clearest entry point into one of modern science’s most profound ideas: that pockets of genuine unpredictability exist inside even perfect determinism.
If a pendulum can be unpredictable, what does that mean for weather, markets, and the spread of disease? Chaos theory doesn’t answer those questions. But it explains why they’re worth asking.
Explore the forced pendulum: [Poincaré Section Visualization](https://elysiatools.com/en/visualizations/forced-pendulum) on ElysiaTools — free, no sign-up.
